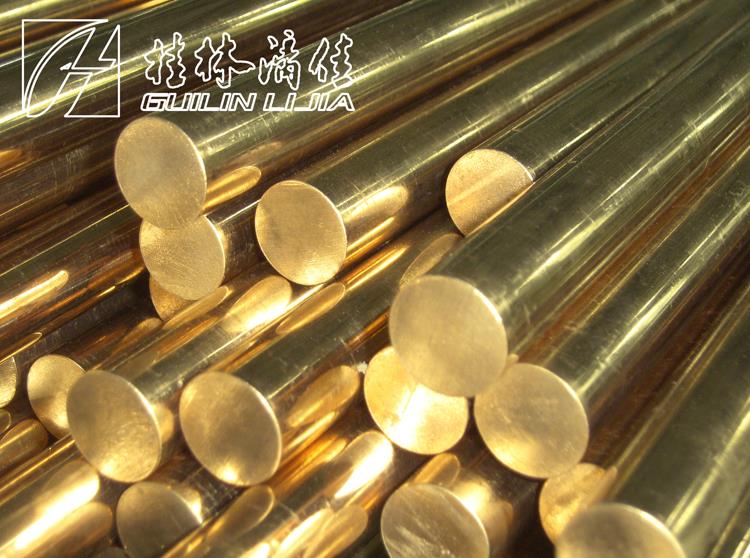

Copper Nickel Bar with High Resistance

Copper nickel bar with high resistance is a rod-shaped alloy made of copper, nickel and strengthening elements like iron and manganese. Due to the specific properties of nickel and copper alloy, it not only holds properties of high resistance, high corrosion resistance and good wear resistance, but also has inherent resistance to macrofouling and good tensile strength.

Alloy and production standard:

C70600, C71500 (ASTM B111 or ASME SB111)

CuNi10Fe1Mn, CuNi30Mn1Fe (EN12451 or EN12449 or DIN)

CN102, CN107 (BS British Standard)

C7060, C7150 (JIS Japanese Industrial Standards)

Chemical composition:

9.0≤Ni≤33.0 ; 0.4≤Fe≤1.8 ; Cu Rem

Dimension/size:

Maximum diameter: 100mm

Minimum diameter: 5mm

Maximum weight: 100kg/bar

Field of application:

Copper nickel bar with high resistance, with excellent cold and hot working performance, can be processed into sheet, belt, pipe, rod and other shapes.

Certifications:

Guilin Lijia has a professional management system, which is certified by ISO 9001: 2015, ISO 14001: 2015 and OHSAS 1801: 2007.

Our quality assurance system is certified by TUV SUD Industrie Service GmbH in accordance with the Pressure Equipment Directive 2014/68/EU, Annex I, Section 4.3, AD 2000-Merkblatt W 0 as well as EN764-5, Para. 4.2.

Besides, we also get Certificate of Works Approval authorized by China Classification Society.

Our Intellectual Property Management System is in accordance with GB/T 29490-2013.
